PR2齿轮泵
更新：2016-9-30 10:29:01 点击：
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 PR2齿轮泵
- 产品描述
PR2-台湾HYDROMAX齿轮泵...
产品介绍
PR2-台湾HYDROMAX齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | PR2 |
| Delivery Capacity | 008,010,020,030,040,050,060,080 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type* | Z Taper shaft |
| X Straight Shaft | |
| Y spline shaft | |
| Flange Mounting Type | 2B SAE 2-bolt |
| 4BDA DIN 4-bolt (Type A) | |
| 4BDB DIN 4-bolt (Type B) | |
| 4BE European 4-bolt | |
| Inlet and Outlet* | F flange type(F1~F2) |
| P PT(P1~P2) | |
| G G,BSP,PF(G1~G2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| PR2-008 | 0.8 | 210 | 250 | 1800 | 4500 | 1000 | 1.0 |
| PR2-010 | 1 | 210 | 250 | 1800 | 4500 | 1000 | 1.0 |
| PR2-020 | 2 | 210 | 250 | 1800 | 4500 | 600 | 1.05 |
| PR2-030 | 3 | 210 | 250 | 1800 | 4500 | 600 | 1.15 |
| PR2-040 | 4 | 210 | 250 | 1800 | 4000 | 600 | 1.18 |
| PR2-050 | 5 | 210 | 250 | 1800 | 3200 | 600 | 1.2 |
| PR2-060 | 6 | 210 | 250 | 1800 | 3200 | 600 | 1.3 |
| PR2-080 | 7.8 | 175 | 210 | 1800 | 3200 | 600 | 1.4 |

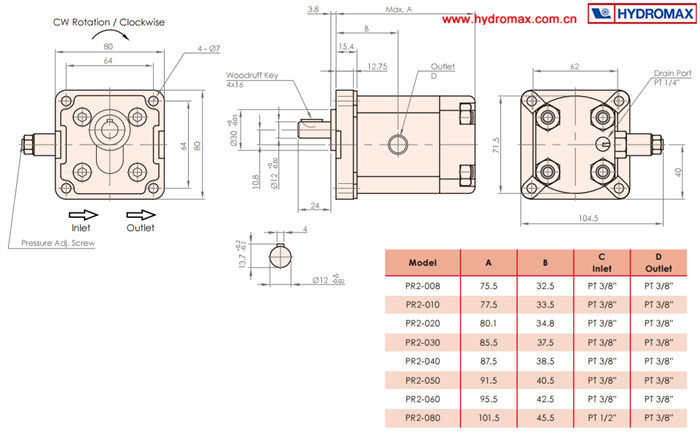

DIMENSIONS(UNIT:mm)
