HGP-3A2D齿轮泵
更新：2016-9-30 9:48:06 点击：
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 HGP-3A2D齿轮泵
- 产品描述
HGP-3A2D_台湾HYDROMAX齿轮泵...
产品介绍
HGP-3A2D_台湾HYDROMAX齿轮泵
ORDER CODES
| Model Name | HGP-3A2D |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Inlet and Outlet* | F flange type(F1~F6) |
| P PT(P1~P2) | |
| G G,BSP,PF(G1~G2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-3A2D-F2R | 2 | 210 | 250 | 1800 | 4000 | 700 | 1.99 |
| HGP-3A2D-F3R | 3 | 210 | 250 | 1800 | 4000 | 700 | 2.03 |
| HGP-3A2D-F4R | 4 | 210 | 250 | 1800 | 4000 | 700 | 2.09 |
| HGP-3A2D-F6R | 6 | 210 | 250 | 1800 | 4000 | 700 | 2.17 |
| HGP-3A2D-F8R | 8.4 | 210 | 250 | 1800 | 3500 | 700 | 2.25 |
| HGP-3A2D-F11R | 11 | 210 | 250 | 1800 | 3000 | 600 | 2.40 |
| HGP-3A2D-F13R | 13 | 210 | 250 | 1800 | 3000 | 600 | 2.50 |
| HGP-3A2D-F14R | 14.3 |
210 | 250 | 1800 | 3000 | 500 | 2.56 |
| HGP-3A2D-F17R | 16.5 | 210 | 250 | 1800 | 3000 | 500 | 2.67 |
| HGP-3A2D-F19R | 19.2 | 210 | 250 | 1800 | 3000 | 500 | 2.79 |
| HGP-3A2D-F23R | 23 | 210 | 250 | 1800 | 3000 | 500 | 2.99 |
| HGP-3A2D-F25R | 25 | 175 | 210 | 1800 | 2800 | 500 | 3.04 |
| HGP-3A2D-F28R | 28 | 175 | 210 | 1800 | 2500 | 500 | 3.15 |
| HGP-3A2D-F30R | 30 | 175 | 210 | 1800 | 2500 | 500 | 3.25 |
| HGP-3A2D-F33R | 33 | 140 | 175 | 1200 | 2500 | 500 | 3.40 |
| HGP-3A2D-F35R | 35 | 125 | 140 | 1200 | 2500 | 500 | 3.51 |

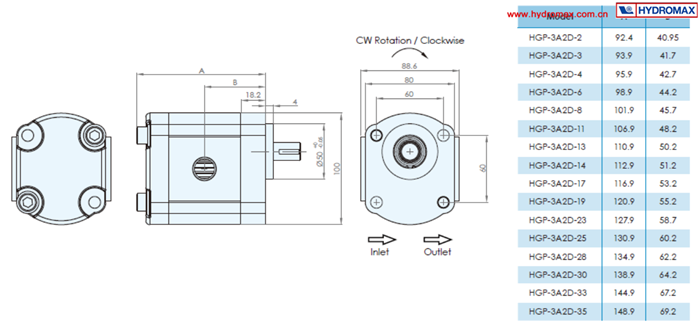

DIMENSIONS(UNIT:mm)
