HGP-11A齿轮泵
更新：2016-9-30 10:16:13 点击：
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 HGP-11A齿轮泵
- 产品描述
HGP-11A_台湾HYDROMAX齿轮泵...
产品介绍
HGP-11A_台湾HYDROMAX齿轮泵
ORDER CODES
| Model Name | HGP-11A |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 05,08,1,2,26,3,4,5,688 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z taper shaft | |
| Flange Mounting Type | 2B SAE 2-bolt |
| 4BDA DIN 4-bolt (Type A) | |
| 4BDB DIN 4-bolt (Type B) | |
| 4BE European 4-bolt | |
| Inlet and Outlet* | F flange type(F1~F2) |
| P PT(P1~P2) | |
| G G,BSP,PF(G1~G2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-11A-F0505R | 0.5+0.5 | 210 | 250 | 1800 | 4500 | 1000 | 2.61 |
| HGP-11A-F0808R | 0.8+0.8 | 210 | 250 | 1800 | 4500 | 1000 | 2.71 |
| HGP-11A-F11R | 1+1 | 210 | 250 | 1800 | 4500 | 1000 | 2.81 |
| HGP-11A-F22R | 2+2 | 210 | 250 | 1800 | 4500 | 600 | 2.91 |
| HGP-11A-F2626R | 2.6+2.6 | 210 | 250 | 1800 | 4500 | 600 | 3.11 |
| HGP-11A-F33R | 3+3 | 210 | 250 | 1800 | 4500 | 600 | 3.13 |
| HGP-11A-F44R | 4+4 | 210 | 250 | 1800 | 4000 | 600 | 3.17 |
| HGP-11A-F55R | 5+5 | 210 | 250 | 1800 | 3200 | 600 | 3.21 |
| HGP-11A-F66R | 6+6 | 210 | 250 | 1800 | 3200 | 600 | 3.41 |
| HGP-11A-F88R | 8+8 | 170 | 210 | 1800 | 3200 | 600 | 3.61 |

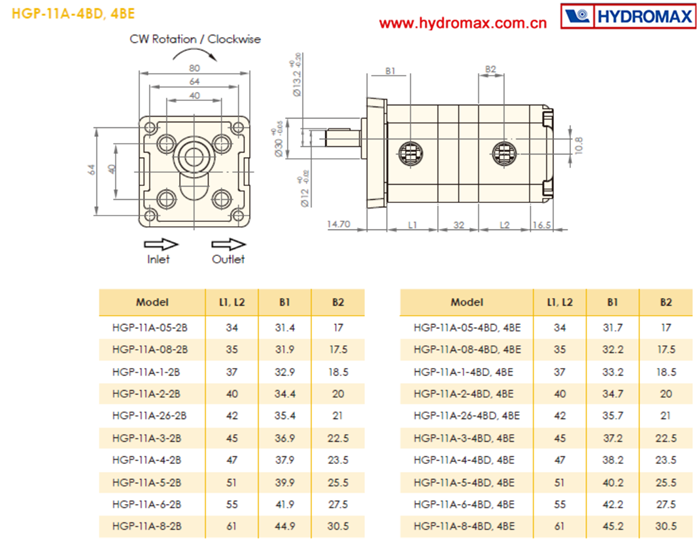

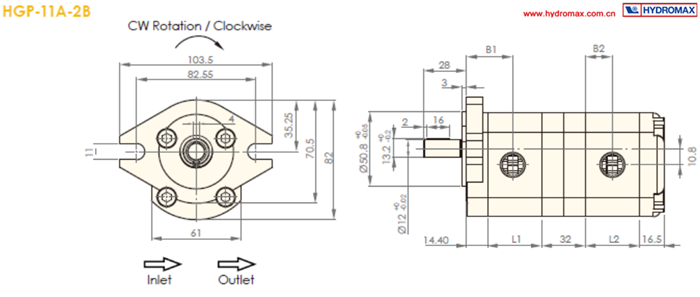

DIMENSIONS(UNIT:mm)
