HGP-53A齿轮泵
更新：2016-9-30 9:23:06 点击：
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 HGP-53A齿轮泵
- 产品描述
HGP-53A_台湾HYDROMAX齿轮泵...
产品介绍
HGP-53A_台湾HYDROMAX齿轮泵
ORDER CODES
| Model Name | HGP-53A |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 22,26,33,44,48,55,63,75,80,90 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Flange Mounting Type | 2B SAE 2-bolt |
| 4BD DIN 4-bolt | |
| Inlet and Outlet*(5A) | F flange type(F1~F8) |
| G G,BSP,PF(G1~G4) | |
| P PT(P1~P2) | |
| U UNF(U1~U6) | |
| Delivery Capacity(3A) | 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35 |
| Inlet and Outlet*(3A) | F flange type(F1~F6) |
| G G,BSP,PF(G1~G2) | |
| P PT(P1~P2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) |
| Displacement | ||||||
| Capacity | ||||||
| (cc/rev) | normal | Max | Loaded | Unloaded | ||
| HGP-53A-F22R | 22+3A | It depends on the 3A that meet your needs. | 3000 | 700 | 7.6~10.5 | |
| HGP-53A-F26R | 26+3A | 3000 | 700 | |||
| HGP-53A-F33R | 33+3A | 3000 | 700 | |||
| HGP-53A-F44R | 44+3A | 3000 | 700 | |||
| HGP-53A-F48R | 48+3A | 3000 | 700 | |||
| HGP-53A-F55R | 55+3A | 3000 | 700 | |||
| HGP-53A-F63R | 63+3A | 3000 | 600 | |||
| HGP-53A-F75R | 75+3A | 3000 | 600 | |||
| HGP-53A-F80R | 80+3A | 3000 | 600 | |||
| HGP-53A-F90R | 90+3A | 2500 | 600 | |||

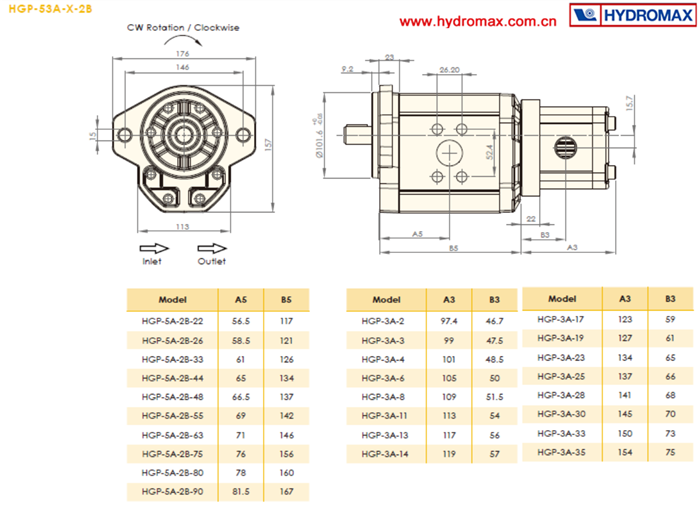

DIMENSIONS(UNIT:mm)
