HGP-3AS齿轮泵

更新:2016-9-30 9:30:20      点击:
  • 产品品牌   台湾HYDROMAX新鸿
  • 产品型号   HGP-3AS齿轮泵
  • 产品描述

    HGP-3AS_台湾HYDROMAX齿轮泵...

产品介绍

HGP-3AS_台湾HYDROMAX齿轮泵

ORDER CODES

Model Name HGP-3AS
Mounting  F Flange Type
  L Foot Type
Delivery Capacity 4,6,8,11,13,14,17,19
Rotation Direction R Clockwise
  L Counter-Clockwise
Shaft Type X Straight Shaft
  Y Spline Shaft
  Z Taper Shaft
Flange Mounting Type 4BJ JIS 4-bolt
Inlet and Outlet* F flange type(F1~F6)
  P PT(P1~P2)
  G G,BSP,PF(G1~G2)
  U UNF(U1~U2)


SPECIFICATIONS

Model Accurate Pressure (kgf/cm2) Speed (r.p.m)     Weight(kg)
Displacement Port Size (PT)
Capacity
(cc/rev) normal  Max  Loaded Unloaded
HGP-4A-F20R 20 250 300 600 3000 1" 3/4" 4.1
HGP-4A-F23R 22.5 250 300 600 3000 1" 3/4" 4.6
HGP-4A-F25R 25 250 300 600 3000 1" 3/4" 5.1
HGP-4A-F28R 28 250 300 600 43000 1" 3/4" 5.7
HGP-4A-F32R 31.5 250 300 600 3000 1" 3/4" 6.4
HGP-4A-F36R 35.5 210 250 600 3000 1" 3/4" 7.1
HGP-4A-F40R 40 210 250 600 3000 1" 3/4" 8
HGP-4A-F45R 45 210 250 600 2600 1" 3/4" 8.8
HGP-4A-F50R 50 175 210 600 2500 1 1/4" 1" 9.7
HGP-4A-F55R 55 175 210 600 2400 1 1/4" 1" 10.7
HGP-4A-F60R 60 140 175 600 2000 1 1/4" 1" 11.8
HGP-4A-F70R 70 125 140 600 2000 1 1/4" 1" 13.1

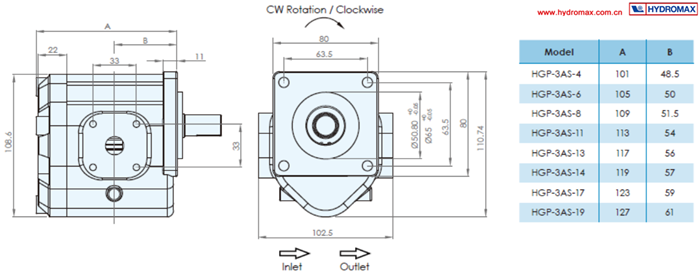

DIMENSIONS(UNIT:mm)
