PR1齿轮泵
更新：2016-9-30 10:29:39 点击：
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 PR1齿轮泵
- 产品描述
PR1-台湾HYDROMAX齿轮泵...
产品介绍
PR1-台湾HYDROMAX齿轮泵
ORDER CODES
| Model Name | PR1 |
| Delivery Capacity | 020,030,040,060,075,090,105,120 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | W tang shaft |
| X Straight Shaft | |
| Y spline shaft | |
| Z taper shaft | |
| Flange Mounting Type | 4BJ JIS 4-bolt |
| Inlet and Outlet* | F flange type(F1) |
| G G,BSP,PF(G1~G2) | |
| P PT(P1~P2) |
SPECIFICATIONS
Model
Accurate
Pressure
(kgf/cm2)
Speed
(r.p.m)
Weight(kg)
Displacement
Capacity
(cc/rev)
normal
Max
Rate
Max
Min
PR1-020
2
210
250
1800
5000
900
1.69
PR1-030
3
210
250
1800
5000
850
1.7
PR1-040
4
210
250
1800
5000
800
1.71
PR1-060
6
210
250
1800
5000
700
1.72
PR1-075
7.5
210
250
1800
5000
600
1.74
PR1-090
9
210
250
1800
5000
550
1.74
PR1-105
10.5
210
250
1800
5000
500
1.74
PR1-120
12
175
250
1800
5000
500
1.76

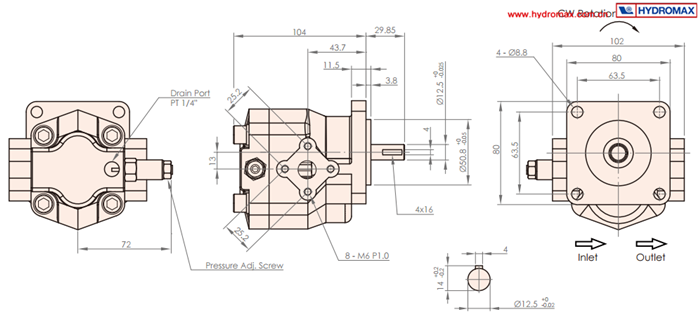

DIMENSIONS(UNIT:mm)
