PR3齿轮泵
- 产品品牌 台湾HYDROMAX新鸿
- 产品型号 PR3
- 产品描述
台湾HYDROMAX齿轮泵PR3...
PR3-台湾HYDROMAX齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | PR3 |
| Delivery Capacity | 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type* | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Flange Mounting Type | 2B SAE 2-bolt |
| 4BD DIN 4-bolt | |
| 4BE European 4-bolt | |
| Inlet and Outlet* | F flange type(F1~F6) |
| G G,BSP,PF(G1~G2) | |
| P PT(P1~P2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
Model
Accurate
Pressure
(kgf/cm2)
Speed
(r.p.m)
Weight(kg)
Displacement
Capacity
(cc/rev)
normal
Max
Rate
Max
Min
PR3-2
2
210
250
1800
4000
700
2.73
PR3-3
3
210
250
1800
4000
700
2.77
PR3-4
4
210
250
1800
4000
700
2.83
PR3-6
6
210
250
1800
4000
700
2.91
PR3-8
8.4
210
250
1800
3500
700
2.99
PR3-11
11
210
250
1800
3000
600
3.14
PR3-13
13
210
250
1800
3000
600
3.24
PR3-14
14.3
210
250
1800
3000
500
3.3
PR3-17
16.5
210
250
1800
3000
500
3.41
PR3-19
19.2
210
250
1800
3000
500
3.53
PR3-23
23
210
250
1800
3000
500
3.73
PR3-25
25
175
210
1800
2800
500
3.78
PR3-28
28
175
210
1800
2500
500
3.89
PR3-30
30
175
210
1800
2500
500
3.99
PR3-33
33
140
175
1200
2500
500
4.14
PR3-35
35
125
140
1200
2500
500
4.25

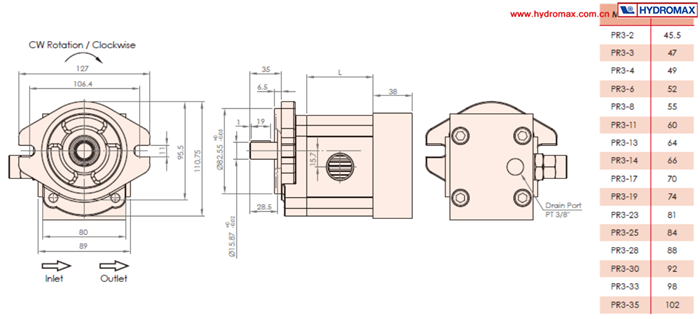

DIMENSIONS(UNIT:mm)
